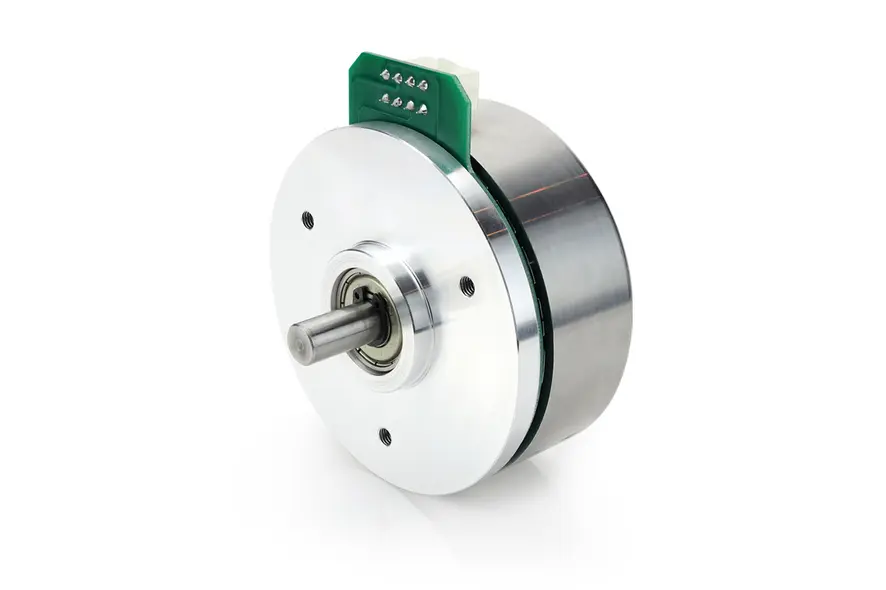

DFA90L048017-A –  Brushless DC flat motor

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}
{{ discount.amount }} - 24
For quantities greater than 24, please contact us for volume pricing.
For quantities greater than 10, please contact us for volume pricing.

Availability

  • This article will be manufactured on request.
Configure

Matching motor controllers: C5-E-2X, N5-2-X, CL4E-E-2-X

You can configure this article with others. Please click the configure button below to start.

Technical Data

  • Rated Current 4.3 A
  • Line to Line Inductance 0.66 mH
  • Torque Constant 23 Ncm/A
  • Motor Connection PCB
  • Peak Torque
  • Rated Power 170 W
  • Rated Speed 1670 rpm
  • Size
  • Line to Line Resistance 0.6 Ohm
  • Rotor Inertia 5000 gcm²
  • Weight
  • Peak Current 13 A
  • Length "A"
  • Rated Torque
  • Rated Voltage 48 V

Dimensions

DFA90
Creation in progress ...

Torque Curves

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



{{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

Accessories

ZK-DF90-500 Connection cable

Knowledge Base

Brushless direct current motors, abbreviated as BLDC motors, are – despite their name –  three-phase current synchronous machines: the rotor follows a magnetic rotational field and the movement is synchronous to the AC voltage applied to the windings. This motor type is frequently referred to as "brushless direct current motor" because, in many applications, it replaces direct current motors with brushes (brushed DC or commutator motors).…
More details
