STA1418 – Stepper motor – NEMA 6 Description Technical data Very small high-torque stepper motor with 14 mm flange, a step angle of 1.8° and a holding torque of 0.62 Ncm. Size NEMA 6 Holding Torque Current per Winding 0.3 A Length "A"
SCA2018 – Stepper motor – NEMA 8 Description Technical data Stepper motor with 30% more torque than comparable motors of the same size. 20 mm flange, 1.8° step angle and 2.2–3.6 Ncm holding torque. Length: 33–40 mm. Size NEMA 8 Holding Torque – Current per Winding 0.6 A – 0.8 A Length "A" –
ST2018 – Stepper motor – NEMA 8 Description Technical data Stepper motor with 20 mm flange, 1.8° step angle and 1.8–3.6 Ncm holding torque. Length: 33–48 mm. Size NEMA 8 Holding Torque – Current per Winding 0.6 A – 0.8 A Length "A" –

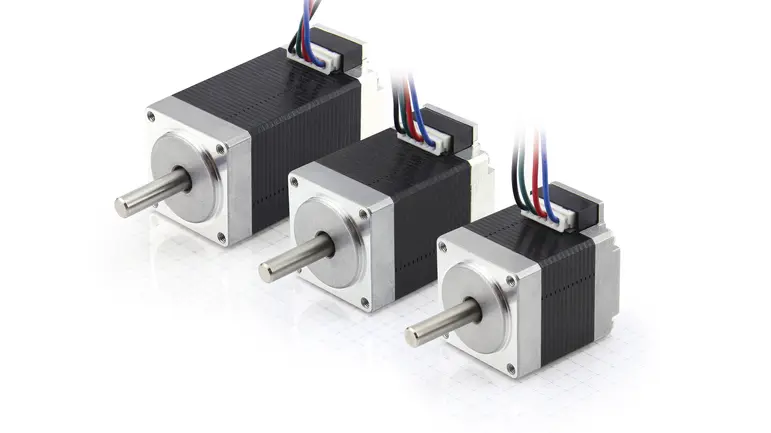

SC2818 – Stepper motor – NEMA 11 Description Technical data Stepper motor with very high torque in relation to its size. 28 mm flange, 1.8° step angle and 9–18 Ncm holding torque. Length: 33–52.5 mm. Size NEMA 11 Holding Torque – Current per Winding 0.6 A – 1.5 A Length "A" –
ST2818 – Stepper motor – NEMA 11 Description Technical data Stepper motor with 28 mm flange, 1.8° step angle and 6.08–12.73 Ncm holding torque. Length: 31.5–50.5 mm. Size NEMA 11 Holding Torque – Current per Winding 0.95 A – 1.4 A Length "A" –
SC3518 – Stepper motor – NEMA 14 Description Technical data High-torque stepper motor with excellent EMC characteristics. 35 mm flange, 1.8° step angle and 10–32 Ncm holding torque. Length: 30–56.5 mm. Size NEMA 14 Holding Torque – Current per Winding 1.2 A Length "A" –
SC4118 – Stepper motor – NEMA 17 Description Technical data Stepper motor with flattened shaft (D shaft) and integrated encoder. 42 mm flange, 1.8° step angle and 50 Ncm holding torque. Length: 50.5 mm. Size NEMA 17 Holding Torque Current per Winding 1.8 A Length "A"
ST4118 – Stepper motor – NEMA 17 Description Technical data Stepper motor with 42 mm flange, 1.8° step angle and 9–80 Ncm holding torque. Length: 26–60 mm. Size NEMA 17 Holding Torque – Current per Winding 0.22 A – 3 A Length "A" –
ST4209 – Stepper motor 0.9° – NEMA 17 Description Technical data Stepper motor with 42 mm flange, 0.9° step angle and 17–44 Ncm holding torque. Length: 42–47.5 mm. Size NEMA 17 Holding Torque – Current per Winding 0.42 A – 1.68 A Length "A" –

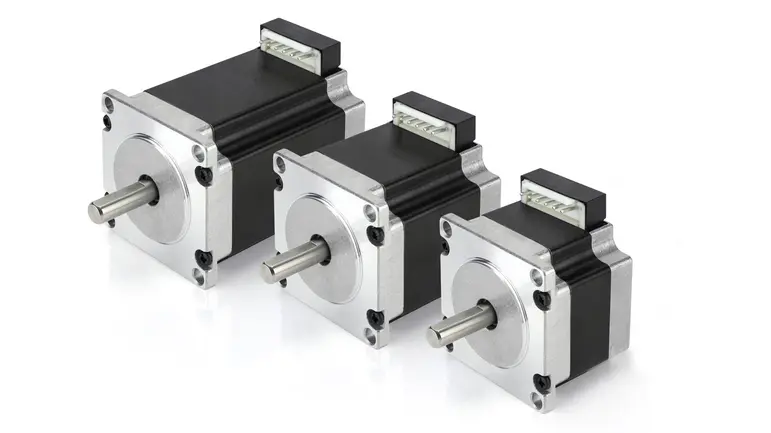

SCA5618 – Stepper motor – NEMA 23 Description Technical data Stepper motor with 15–30 % more torque than its predecessor ST5918. 56 mm flange, 1.8° step angle and 50–230 Ncm holding torque. Length: 40.5–76.5 mm. Size NEMA 23 Holding Torque – Current per Winding 2.8 A – 4.2 A Length "A" –

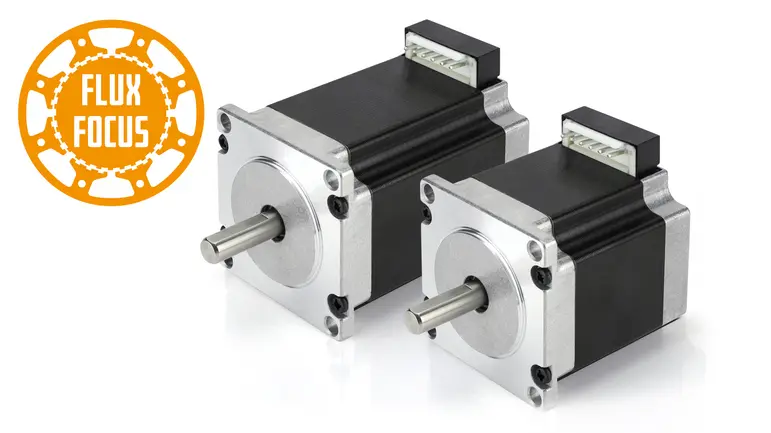

SCB5618 – Stepper motor with FluxFocus technology – NEMA 23 Description Technical data Ultra high-torque motor with integrated connector and 56 mm flange. Very high torque/size ratio and torque improvement over the whole speed range due to Nanotec’s FluxFocus technology. Size NEMA 23 Holding Torque – Current per Winding 4.2 A Length "A" –

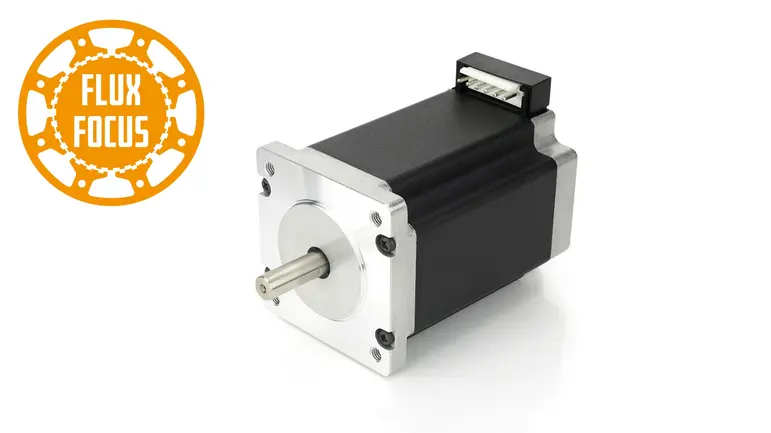

SCB6018 – Stepper motor with FluxFocus technology – NEMA 24 Description Technical data Ultra high-torque stepper motor with integrated connector and 60 mm flange. The SCB6018 motor comes with a second shaft for mounting an optical or magnetic encoder. Size NEMA 24 Holding Torque – Current per Winding 4.2 A Length "A" –
ST5909 – Stepper motor 0.9° – NEMA 23 Description Technical data Stepper motor with 56 mm flange, 0.9° step angle and 60.81–179.61 Ncm holding torque. Length: 41–76 mm. Size NEMA 23 Holding Torque – Current per Winding 1 A – 3 A Length "A" –
ST5918 – Stepper motor – NEMA 23 Description Technical data Stepper motor with 56 mm flange, 1.8° step angle and 53.74–186.68 Ncm holding torque. Length: 41–76 mm. Size NEMA 23 Holding Torque – Current per Winding 1 A – 4.5 A Length "A" –

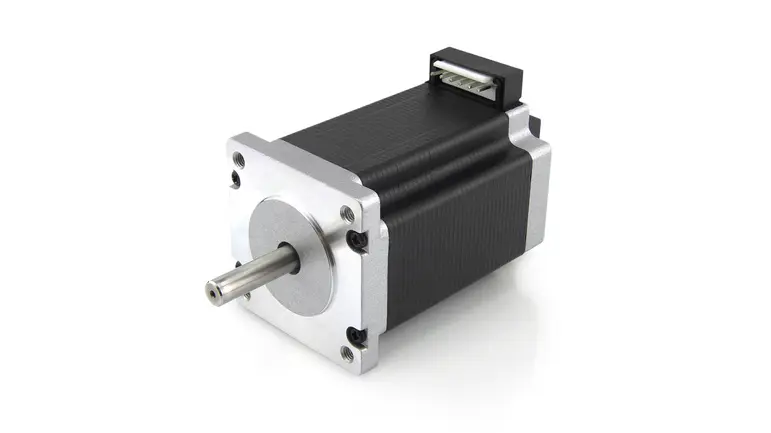

SC6018 – Stepper motor – NEMA 24 Description Technical data Stepper motor with flattened shaft (D shaft) and integrated encoder. 60 mm flange, 1.8° step angle and 354 Ncm holding torque. Length: 88 mm. Size NEMA 24 Holding Torque Current per Winding 4.2 A Length "A"

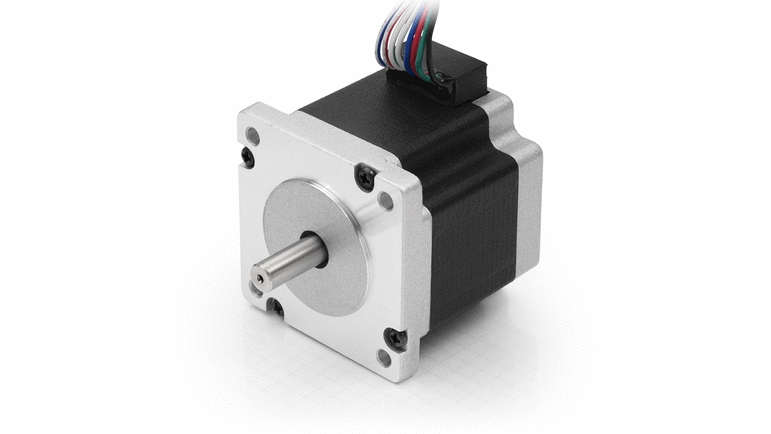

ST6018 – Stepper motor – NEMA 24 Description Technical data Stepper motor with 60x60 mm flange and a higher power output than the ST5918 series. 1.8° step angle and 106.07–400.22 Ncm holding torque. Length: 42–111 mm. Size NEMA 24 Holding Torque – Current per Winding 2 A – 4.5 A Length "A" –
ST8918 – Stepper motor – NEMA 34 Description Technical data Stepper motor with very high torque in relation to its size. 86 mm flange, 1.8° step angle and 353.55–1,202.08 Ncm holding torque. Length: 65–156 mm. Size NEMA 34 Holding Torque – Current per Winding 4.5 A – 6.7 A Length "A" –

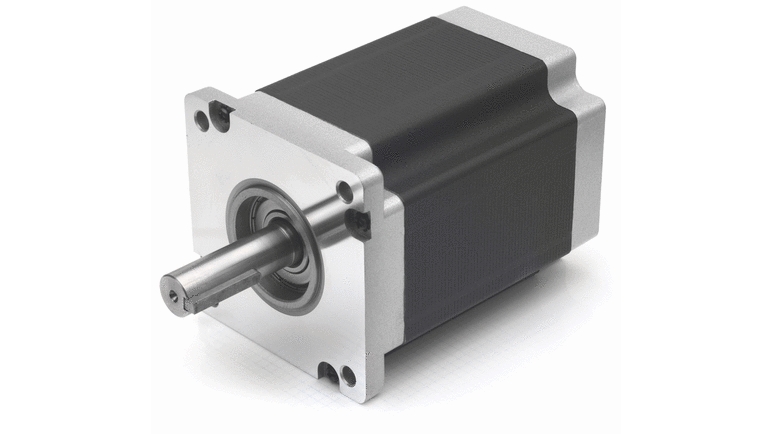

ST11018 – Stepper motor – NEMA 42 Description Technical data Stepper motor with 110 mm flange, 1.8° step angle and 1,170–2,500 Ncm holding torque. Length: 99–201 mm. Size NEMA 42 Holding Torque – Current per Winding 5.5 A – 8 A Length "A" –
