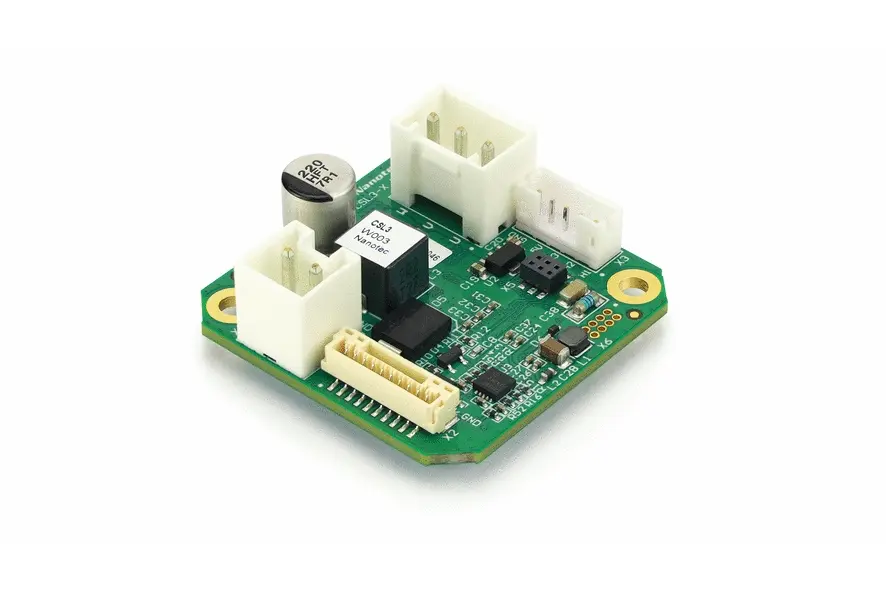

CSL3-5 –  BLDC controller/drive for I/O-based applications

Cadenas

Single Price


Minimum order quantity {{ pna.data.minimumOrderQuantity }} pcs.

Availability

  • Please contact us for volume pricing and current availability.

Technical Data

  • Interface UART (3.3 V)
  • Operating Voltage 10 VDC - 30 VDC
  • Rated Current (RMS) 3 A
  • Number of Digital Inputs 4
  • Number of Analog Inputs 1
  • Number of Digital Outputs 2
  • Encoder Input
  • Weight
  • Matching Motors Brushless DC motors with Hall sensors
  • Logic Voltage -
  • Peak Current (RMS) 9 A
  • Type of Digital Inputs 5 V
  • Type of Analog Input 0 - 10 V
  • Type of Digital Output high side switch (max. 30 V/50 mA)
  • Brake Output
  • Temperature Range -10 °C - 40 °C

Dimensions

CSL3-X
Creation in progress ...

Downloads

CAD
Manuals
Conformity

Accessories

ZK-PHR-5-500 Hall cable 0.5m
ZK-GHR10-500-S-COM IO/COM cable 0.5m
ZK-RS232-USB-1 Converter cable RS232-USB
ZK-VHR-3-500 Motor cable 0.5m
ZK-VHR-2-500 Power cable 0.5m
Z-K4700/50 Capacitor
