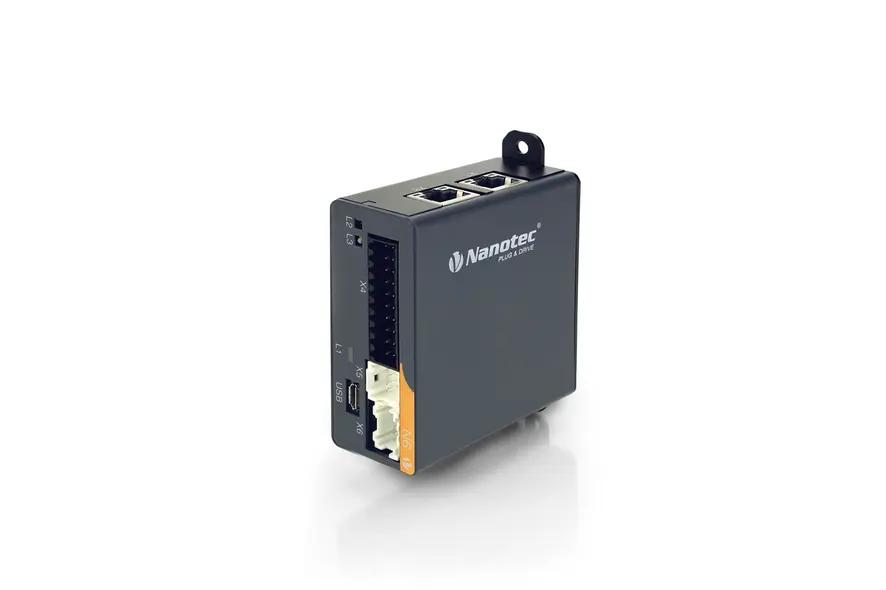

N6-1-2-1 –  Motor controller/drive for CANopen

N6 motor controller for NEMA 14–34 stepper and BLDC motors with FOC and fieldbus compatibility
Cadenas

Single Price


Minimum order quantity {{ pna.data.minimumOrderQuantity }} pcs.

Availability

  • Please contact us for volume pricing and current availability.

Technical Data

  • Fieldbus CANopen
  • Operating Voltage 12 VDC – 57.6 VDC
  • Rated Current (RMS) 6 A
  • Matching Motors Brushless DC motors, Stepper Motors
  • Type of Digital Inputs 5 V/24 VDC and PNP/NPN switchable
  • Type of Analog Input 0 - 24 VDC, 1 kHz
  • Type of Digital Output 5 V/UBLogic and sink/source switchable
  • Encoder Signal Type Hall, QEI, SSI
  • Weight
  • Safety function -
  • Interface Micro USB
  • Logic Voltage 12 - 30 VDC (mandatory)
  • Peak Current (RMS) 6 A
  • Number of Digital Inputs 6
  • Number of Analog Inputs 2
  • Number of Digital Outputs 3
  • Encoder Input
  • Brake Output
  • Temperature Range -10 °C – 40 °C

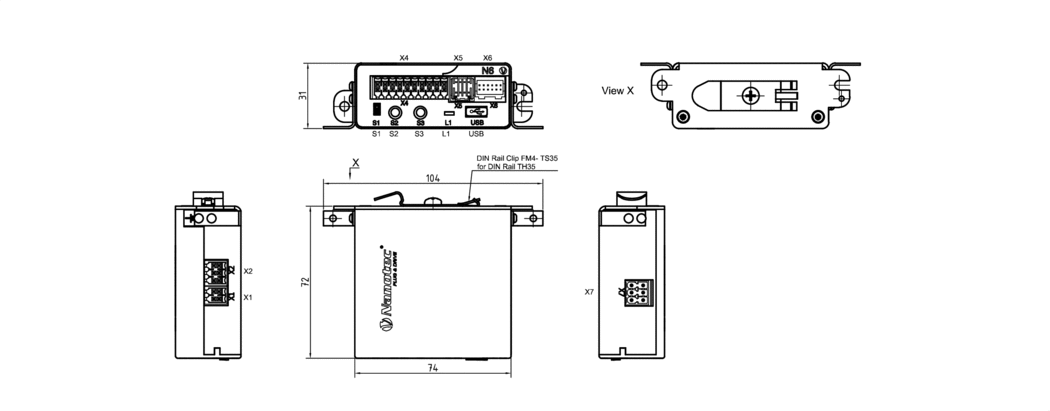

Dimensions

Creation in progress ...

Downloads

CAD
Datasheets
Manuals
Software
Conformity

Accessories

ZK-PADP-12-500-S Encoder cable controller/drive 0.5m

Knowledge Base
The examples and the Application Note show you how the NanoJ Library simplifies the use of the CiA 402 Power State Machine. The functions of the library are contained in a single header file, which you can easily add to your NanoJ project in Plug & Drive Studio.
More details
CANopen Stepper Motor, BLDC Motor, Controller
To reduce the length of the wiring harnesses in vehicles and save on weight, the Bosch company developed the so-called CAN bus for networking control units in 1987. CAN is the abbreviation for "Controller Area Network" and is often used in combination with "bus" (Binary Unit System) to describe a system for the transmission of data between different devices on a shared transmission path.
More details
