CLC15-2-1 –  Servo drives New

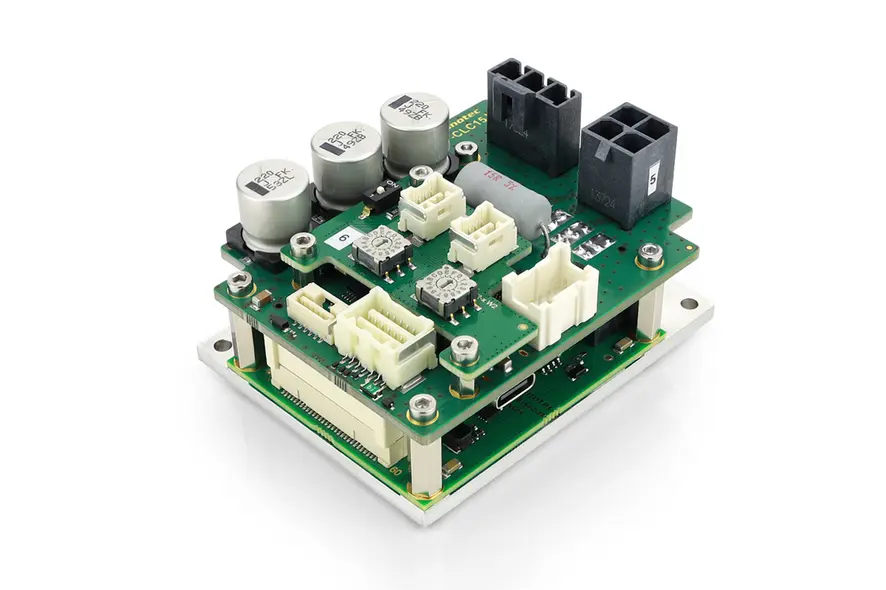

Nanotec CLC15 servo drive: 15 A open-frame motor controller with Field-Oriented Control (FOC) and sensorless closed-loop.
Cadenas

Single Price

Minimum order quantity {{ pna.data.minimumOrderQuantity }} pcs.

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}
—
{{ discount.amount }}+

Availability

  • Please contact us for volume pricing and current availability.

Technical Data

  • Fieldbus EtherCAT
  • Operating Voltage 12 VDC – 57.6 VDC
  • Rated Current (RMS) 15 A
  • Matching Motors Brushless DC motors
  • Type of Digital Inputs 5 V/24 VDC and PNP/NPN switchable
  • Type of Analog Input 0 - 24 VDC, 1 kHz
  • Type of Digital Output 5 V/UBLogic switchable
  • Encoder Signal Type Hall, QEI, SSI
  • Weight
  • Interface USB
  • Logic Voltage 12 - 30 VDC (mandatory)
  • Peak Current (RMS) 45 A
  • Number of Digital Inputs 6
  • Number of Analog Inputs 2
  • Number of Digital Outputs 2
  • Encoder Input
  • Brake Output
  • Temperature Range -10 °C – 40 °C

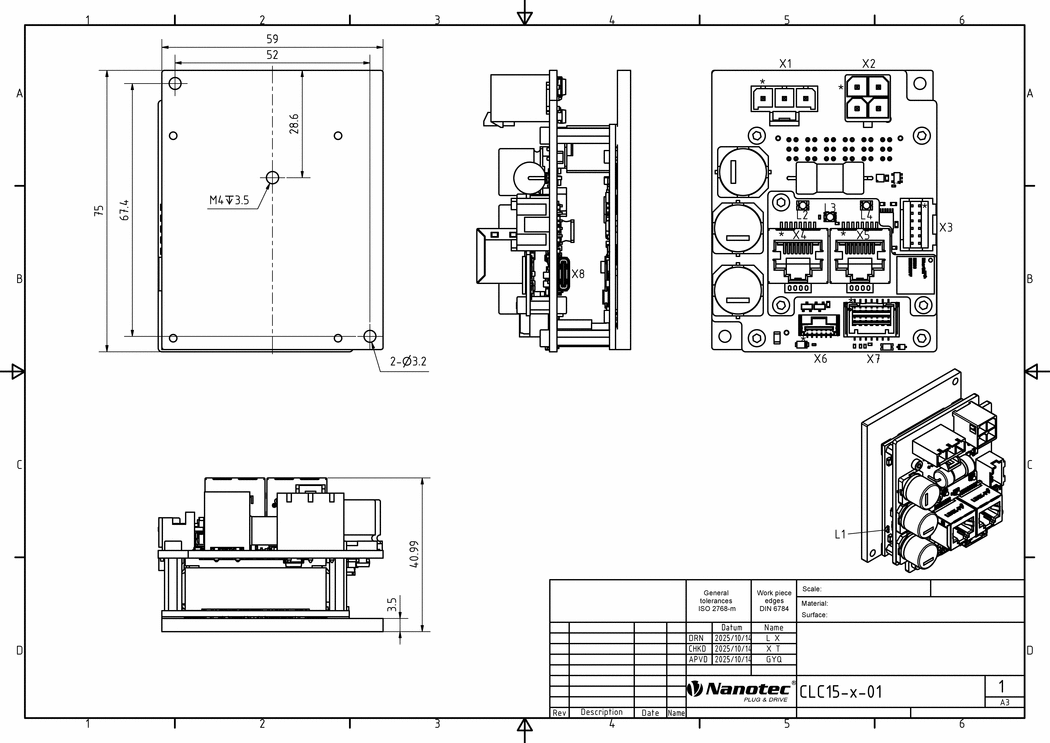

Dimensions

Creation in progress ...

Downloads

CAD
Datasheets
Manuals
Software
Conformity

Knowledge Base
The examples and the Application Note show you how the NanoJ Library simplifies the use of the CiA 402 Power State Machine. The functions of the library are contained in a single header file, which you can easily add to your NanoJ project in Plug & Drive Studio.
More details
