Dimensioned drawings

All dimensions are in millimeters.

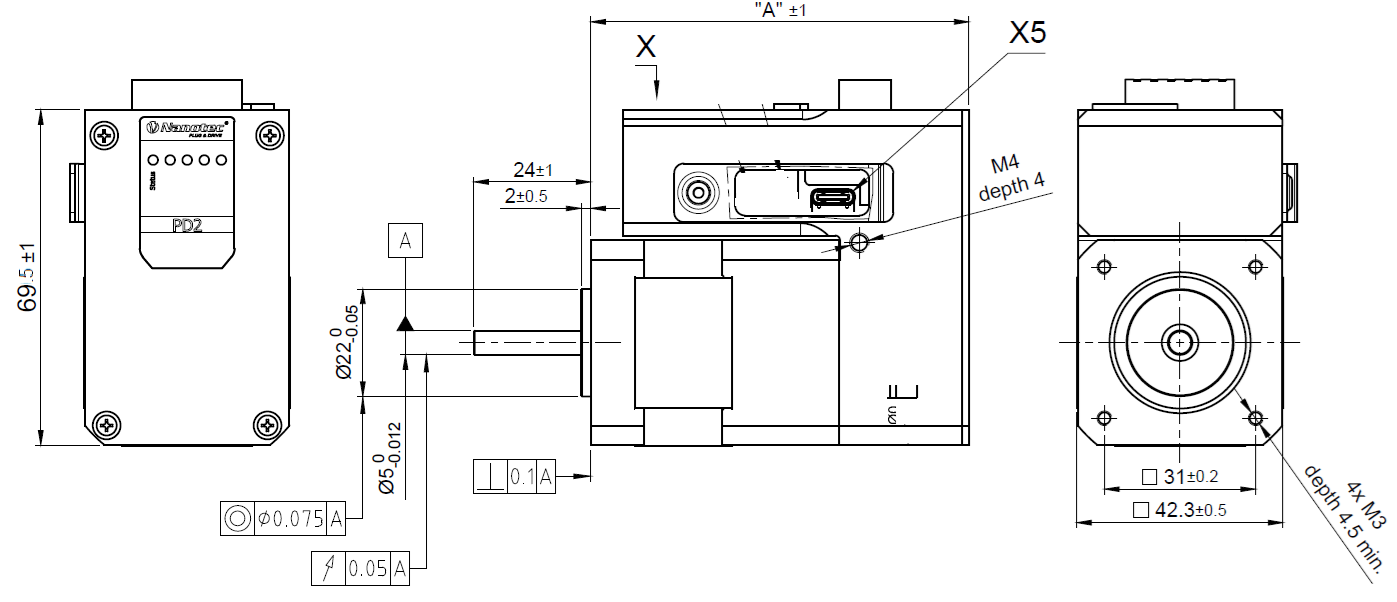

Variant PD2-E421x-x-30...	M-E	M-M	L-E	L-M	D-E	D-M
Motor length "A"	74.7	81.7	86.2	93.2	92.5	99.5

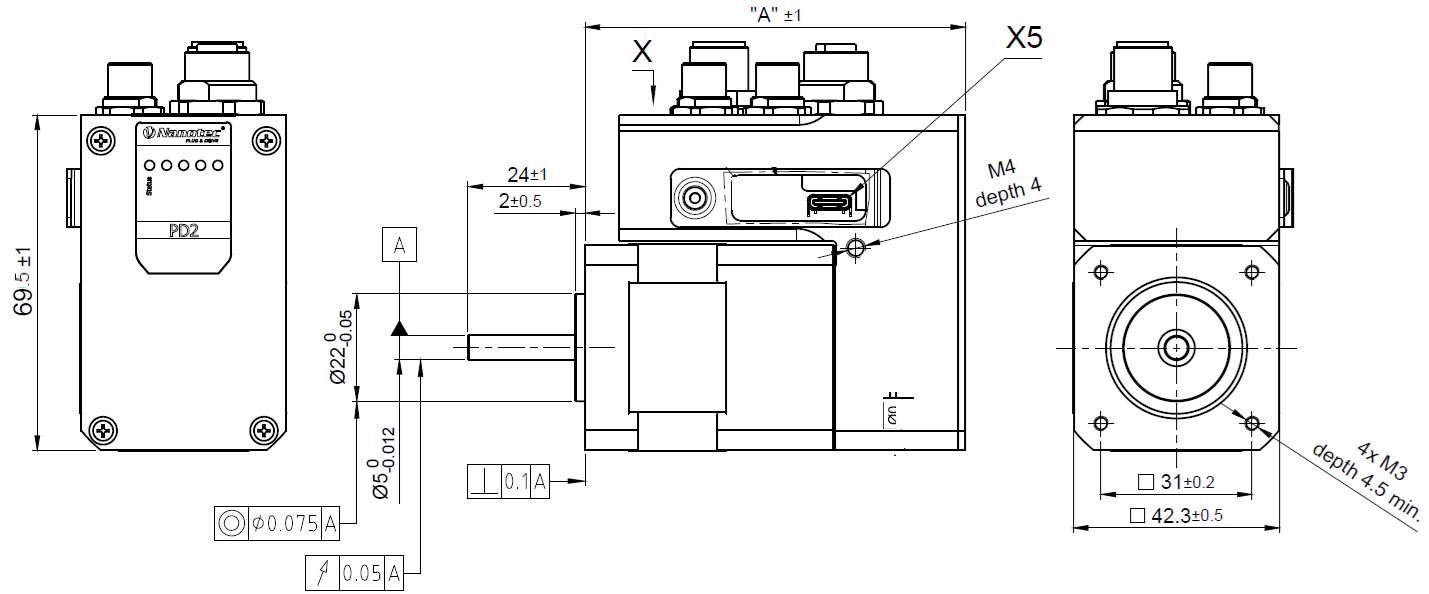

Variant PD2-E421x-x-65...	M-E	M-M	L-E	L-M	D-E	D-M
Motor length "A"	75.5	82.5	87	94	93.5	100.5

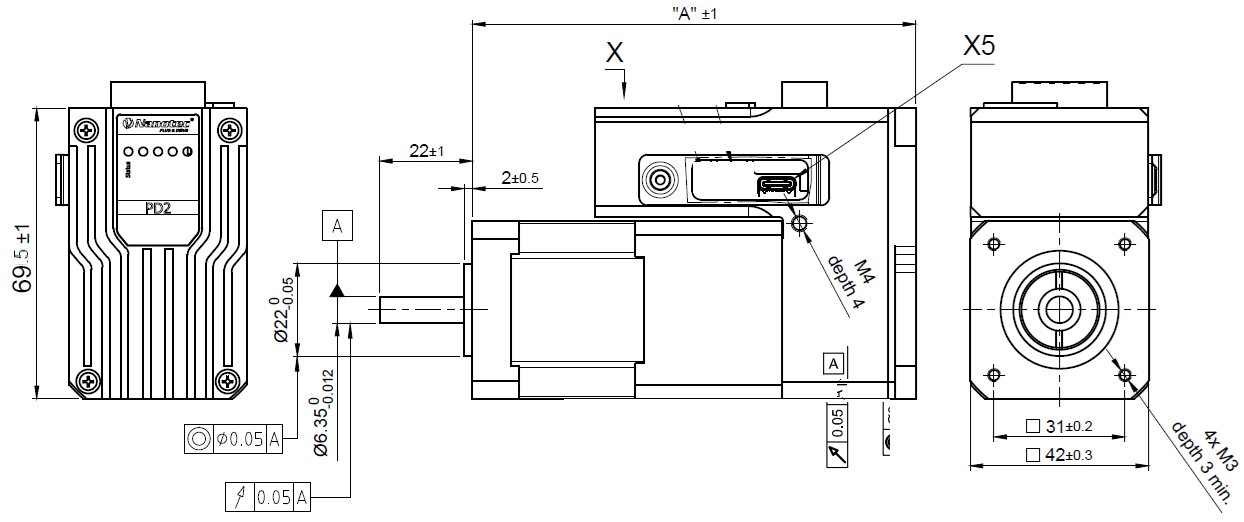

Variant PD2-EB42xx-x -30...	MB-E	MB-M	LB-E	LB-M	MD-E	MD-M	LD-E	LD-M	CD-E	CD-M
Motor length "A"	98	105	118	125	98	105	118	125	138	145

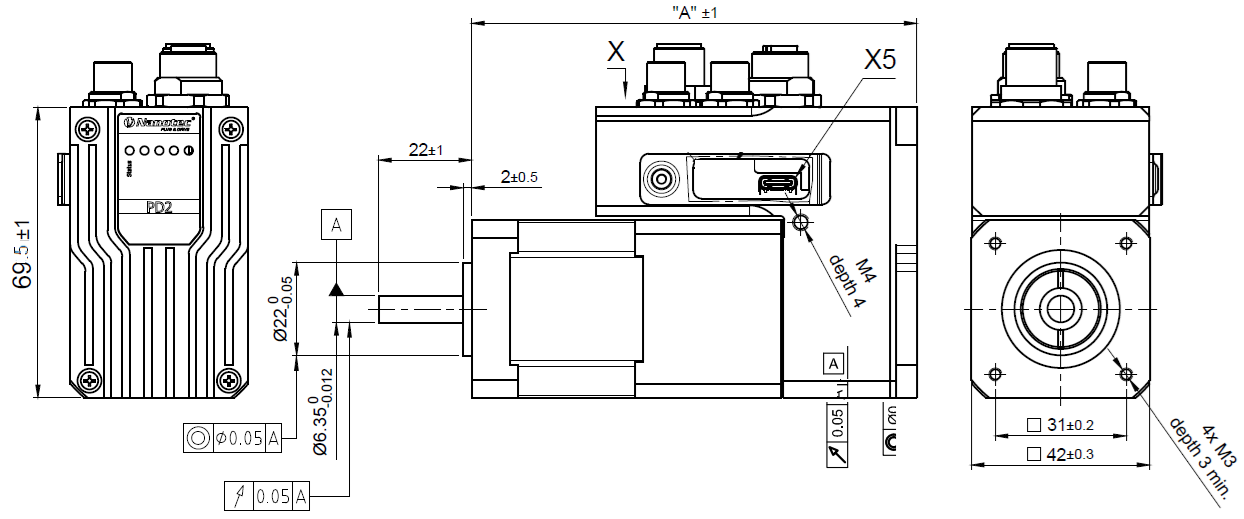

Variant PD2-EB42xx-x -65...	MB-E	MB-M	LB-E	LB-M	MD-E	MD-M	LD-E	LD-M	CD-E	CD-M
Motor length "A"	98.5	105.8	118.5	125.8	98.5	105.8	118.5	125.8	138.5	145.8
