PD4-E591L42-M-65-2A –  Stepper motor with integrated controller IP65 – NEMA 23/24

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}
{{ discount.amount }} - 24
For quantities greater than 24, please contact us for volume pricing.
For quantities greater than 10, please contact us for volume pricing.

Availability

  • This article will be manufactured on request.
Configure
You can configure this article with others. Please click the configure button below to start.

Technical Data

  • Size
  • Fieldbus CANopen
  • Holding Torque
  • Rated Current (RMS) 4.2 A
  • Number of Digital Inputs
  • Number of Analog Inputs
  • Number of Digital Outputs
  • Encoder
  • Singleturn Resolution 17 bit
  • Length
  • NEMA 23
  • Interface
  • Operating Voltage 12 VDC - 48 VDC
  • Peak Current (RMS) 4.2 A
  • Type of Digital Inputs 5/24 V switchable
  • Type of Analog Input 0 - 20 mA / 0 - 10 V switchable
  • Type of Digital Output open-drain (max. 24 V/100 mA)
  • Encoder Type multi-turn absolute
  • Multiturn Resolution 16 bit
  • Weight

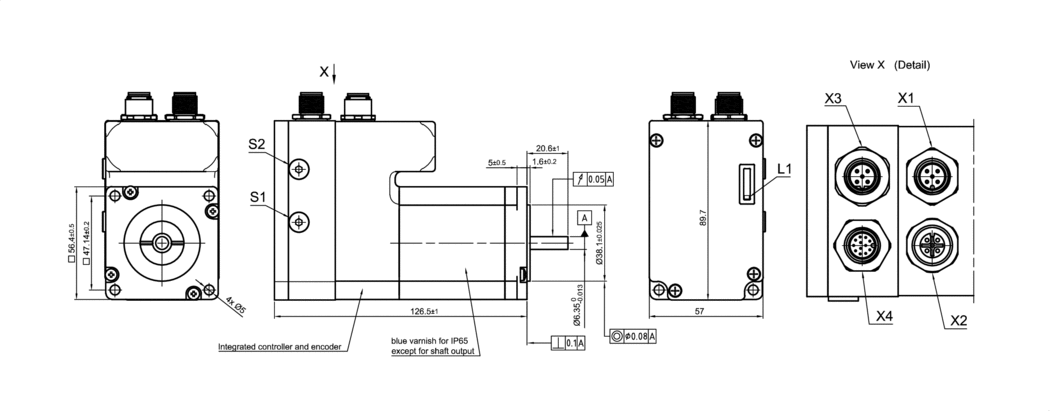

Dimensions

Creation in progress ...

Torque Curves

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



{{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

Accessories

Z-K4700/50 Capacitor
ZK-M12-5-2M-1-B-S Power straight, 2m
ZK-M12-12-2M-1-AFF IO straight, 2m
ZK-M12-5-2M-1-A-S-M CAN out straight, 2m
ZK-M12F-M8M-5-200-S CAN in straight, 0.2m
ZK-M12M-M8F-5-200-S CAN out straight, 0.2m
ZK-M12M-M12F-5-500-S CAN in/out straight, 0.5m
ZK-M12-5-2M-1-AFF CAN in straight, 2m
