DFA68M024037-A –  Brushless DC flat motor

short outer rotor bldc motor dfa 68 mm
Cadenas

Single Price

Minimum order quantity {{ pna.data.minimumOrderQuantity }} pcs.

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}
—
{{ discount.amount }}+

Availability

  • Please contact us for volume pricing and current availability.
  • Subject to prior sale.
Configure

Matching motor controllers: C5-E-2X, N5-2-X, CL4E-E-2-X

You can configure this article with others. Please click the configure button below to start.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (35)
Shaft modification Shaft modification (2)

Technical Data

  • Rated Current 5.6 A
  • Line to Line Inductance 0.2 mH
  • Torque Constant 5.4 Ncm/A
  • Motor Connection Open Cable End
  • Peak Torque
  • Rated Power 110 W
  • Rated Speed 3700 rpm
  • Size
  • Line to Line Resistance 0.25 Ohm
  • Rotor Inertia 1000 gcm²
  • Weight
  • Peak Current 17 A
  • Length "A"
  • Rated Torque
  • Rated Voltage 24 V
  • Encoder

Dimensions

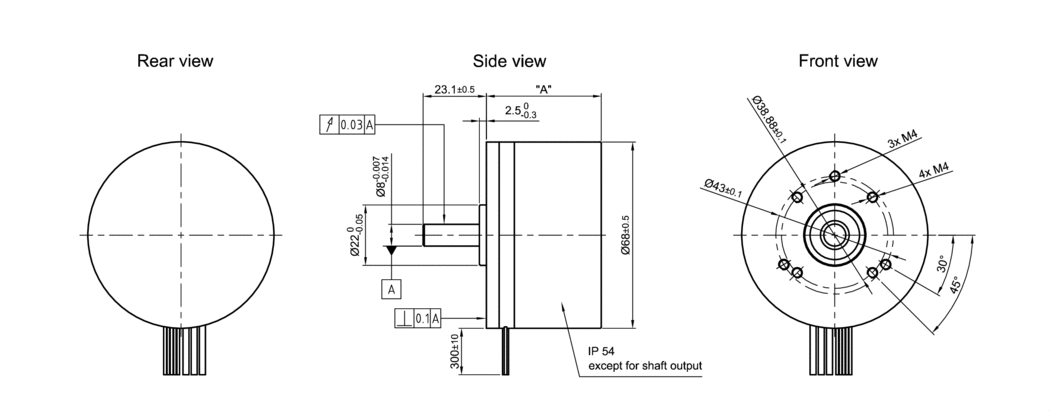

DFA68
Creation in progress ...

Torque Curves

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
