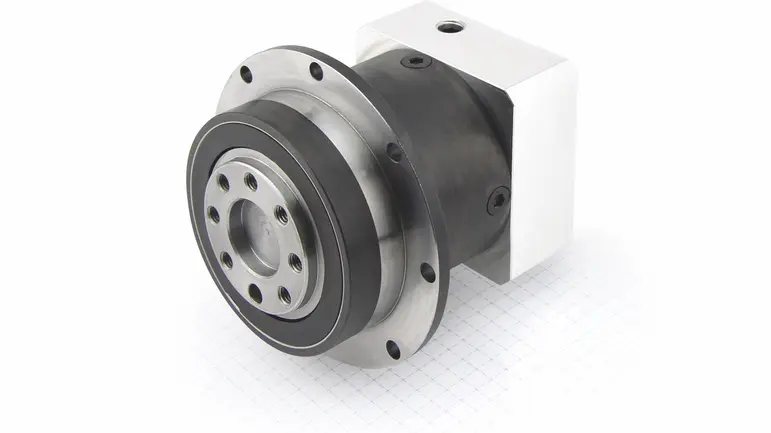

GPLEF – Flange gearboxes

GPLEF – Flange gearboxes

The GPLEF flange gearboxes are an economical alternative to cycloid or shaft gearboxes, and offer up to 97% efficiency. The output flange complies with EN ISO 9409, and enables direct mounting of swivel arms or rotary tables.

  • Short design
  • High output torques
  • High efficiency
  • Any installation position
  • Lifetime lubrication

GPLEF – Flange gearboxes  –  Products

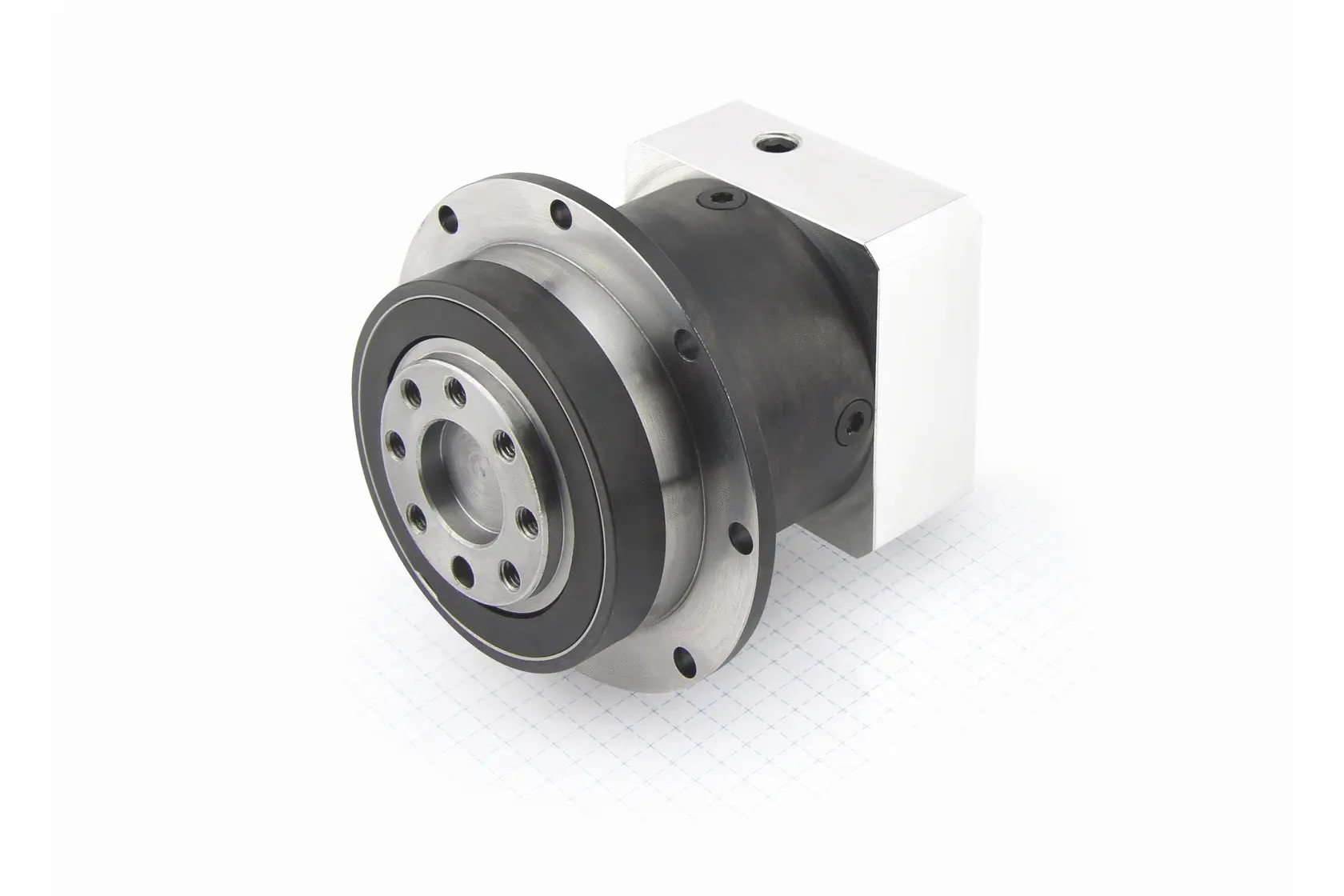

GPLEF64

GPLEF64 – Flange gearboxes

Flange gearboxes for NEMA 23 (56 mm) and NEMA 24 (60 mm) motors. Available in various lengths and reductions.
  • Reduction Ratio 5  – 25
  • Rated Output Torque 15 Nm – 40 Nm
  • Efficiency 95 % – 97 %
  • Max. Backlash 10 ´(arc minutes) – 12 ´(arc minutes)
