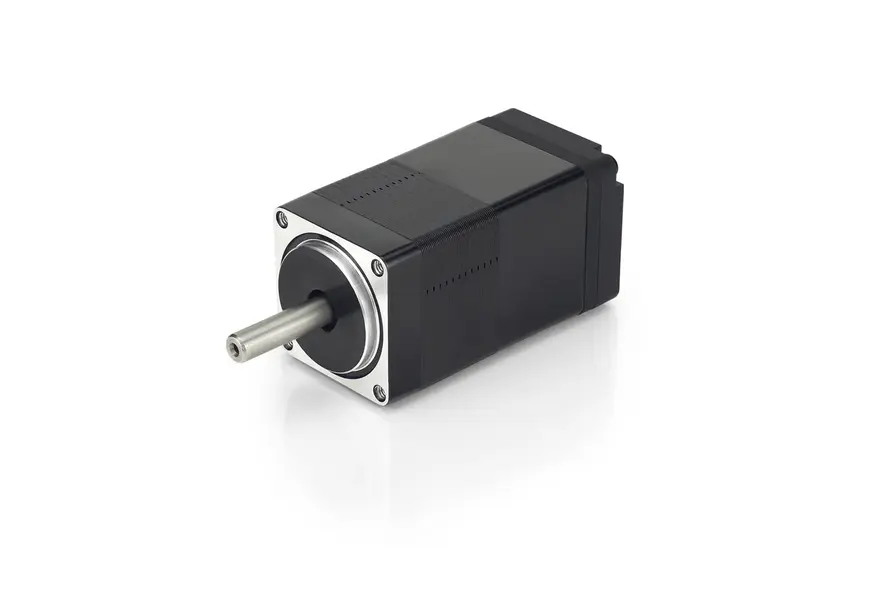

PD1-C281S15-E-20-2 –  Stepper motor with integrated controller – NEMA 11

Single Price

Volume Discount

For quantities greater than 10, please contact us for volume pricing.


  • More stock available soon.
Combine article
Please click on „Combine Article” or the plus sign to start the configurator.

Technical Data

  • IP-Protection Motor (Except Shaft Output) IP20
  • NEMA 11
  • Interface
  • Operating Voltage 12 VDC - 30 VDC
  • Peak Current (RMS) 3 A
  • Type of Digital Inputs 5/24 V switchable
  • Type of Analog Input 0 - 30 V
  • Type of Digital Output push-pull (5/24 V switchable, max. 50mA)
  • Encoder Type single-turn absolute
  • Length
  • Size
  • Fieldbus CANopen
  • Holding Torque
  • Rated Current (RMS) 1.5 A
  • Number of Digital Inputs
  • Number of Analog Inputs
  • Number of Digital Outputs
  • Encoder
  • Encoder Resolution 4096 CPR


Creation in progress ...


ZK-MPS-12-0.5M-S IO/COM/PWR PD1-Cxx-20-x 0.5m
